Near Field Probe

A Near-Field Probe is a diagnostic tool used to detect and measure localized electromagnetic fields (electric or magnetic) around electronic circuits and PCB traces.

 100 Series EMC Probes

• An integrated electrostatic shield in the loop probes eliminates common-mode pickup.
• Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies.
• Probe dimensions optimized for access to tight spaces.
• Calibrated sensitivity up to 3 GHz, depending on model. Usable to beyond 6 GHz.
• Can be driven by a signal source to generate fields for electromagnetic susceptibility testing.

Datasheet
150A EMC Probe Amplifier

• High gain and low noise improves measurement sensitivity and speed.
• Wide bandwidth allows it to be used with all 100 series probes.
• RF input and output protected against ESD and DC power.
• AC power supply included.
• Standard 50 ohm inputs and outputs allow it to be used in any application requiring a low noise amplifier.

Datasheet

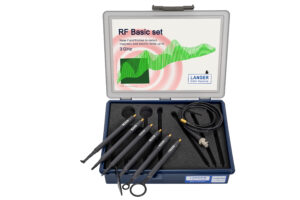

Langer-EMV Passive Active Near Field Probe

 • LF series-100kHz to 50MHz, Low-frequency magnetic field measurement.   • RF series-30MHz to 3GHz, General EMC debugging probes.                           • XF series-30MHz to 6GHz, Extended frequency probes.                                 • SX series-1GHz to 20GHz, High frequency applications.                                 • HR series-up to 40GHz, High-resolution, very high-frequency measurements.                                                                                                     • MFA series (Active)-1MHz to 6GHz, Active magnetic field analysis with built-in amplification.

Datasheet

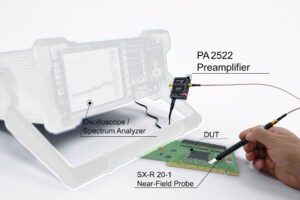

Langer-EMV Preamplifier 100kHz to 22GHz

• PA 203 (BNC/SMA)-100kHz to 3GHz, 20dB gain, best for LF and RF probes. • PA 303 (N/BNC/SMA)-100kHz to 3GHz, 30dB gain, best for LF and RF probes.                                                                                                                    • PA 306-100kHz to 6GHz, 30dB gain, best for XF probes.                                  • PA 3010 (SMA)-10MHz to 10GHz, 30dB gain, best for SX probes.                    • PA 2522 (SMA)-10MHz to 22GHz, 25dB gain, best for SX and HR probes.

Datasheet
